This guide is intended specifically for Fujifilm camera users to set up a wired connection to Zno Instant.
For a more comprehensive article about how to use Zno Instant, which is not camera maker specific, please see How to use Zno Instant.
What You’ll Need
- Phone
- On-The-Go (OTG) Cable
- Camera Mount (optional)
- Zno Instant mobile app already downloaded onto your phone.
Watch this tutorial video to learn how to configure your Fujifilm camera or continue reading below.
Step 1: Adjust Camera Settings
- Set your Fujifilm camera power to stay on for the longest time.

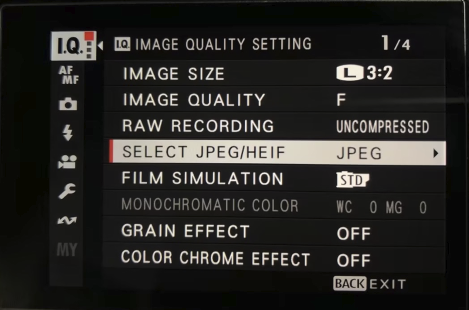

- Set the photo format to JPG.

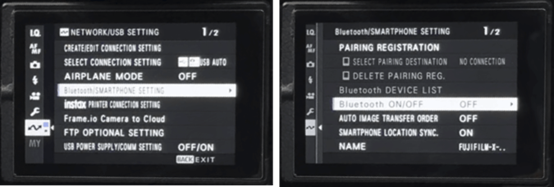

- Check the camera's external connection settings and turn off: Bluetooth, WiFi, FTP transfer, etc (ignore turning off these settings if not applicable).
Step 2 (a): Using “Manual Mode”

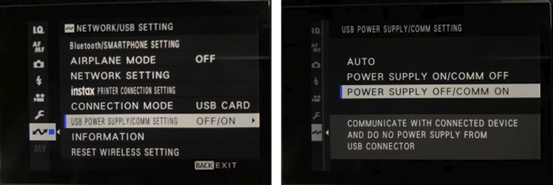

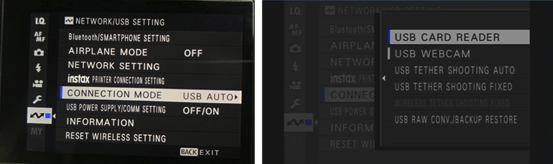

“Manual Mode” refers to the process where you will be able to shoot when disconnected and then transmit images once reconnected. To use this mode, adjust the camera's "CONNECTION MODE" to "USB CARD READER" and adjust the camera's "USB POWER SUPPLY/COMM SETTING" to "POWER SUPPLY OFF/COMM ON"
Notes:
In this mode, you can only manually push images to be uploaded. You cannot automatically upload images while shooting.
This mode reads data from memory card slot 1 by default. So it’s recommended to only use one memory card and to keep it in slot 1.
Step 2 (b): Using “Automatic Upload Mode”

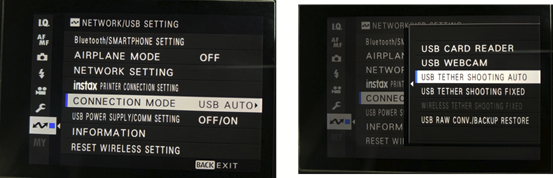

“Automatic Upload Mode” refers to a process where you will be able to shoot and transfer simultaneously. To use this mode, adjust the camera's "CONNECTION MODE" to "USB TETHER SHOOTING AUTO" and adjust the camera's "USB POWER SUPPLY/COMM SETTING" to "POWER SUPPLY OFF/COMM ON".
OTG Connection
️️️If you are using your Fujifilm camera with cell phone brands such as OPPO, vivo, OnePlus, iQOO, realme, the OTG function needs to be manually enabled. In your cell phone settings, search for "OTG" and then enable "OTG connection." Huawei and Xiaomi phones are enabled by default.
Pop-Up Authorization

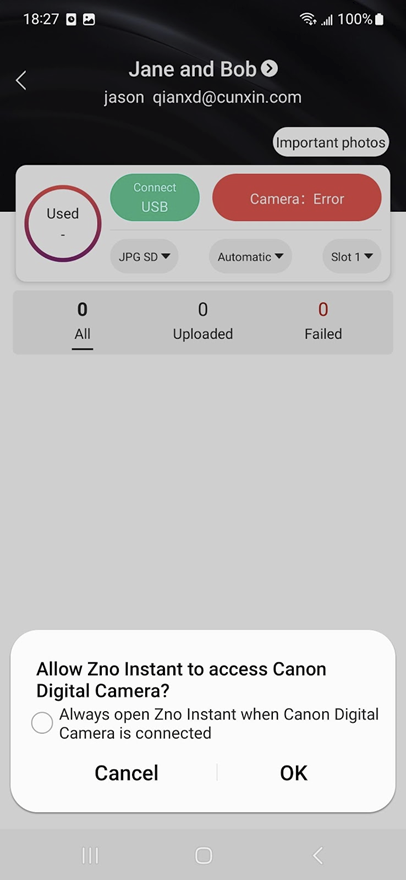

Once you have successfully connected your Fujifilm camera, you may receive a pop-up authorization similar to the one below. If there is a pop-up asking for authorization for the “album” or “gallery,” you will want to click "Cancel." It’s only when Zno Instant specifically asks for authorization that you should click "OK" (see below).
FAQ
1.Why can't my camera connect to Zno Instant APP?
For wired connection, troubleshoot with the following steps:
-
If you are on an Android check if the phone system is above 7.1.1 and that an OTG function is enabled on the phone.
-
Make sure the data cable is specifed as an “OTG cable.” Just because the plugs on your cable are compatible with both your cell phone and the camera does not mean it’s an OTG cable.
-
Make sure you have only selected authorization pop-ups specifically for Zno Instant. Pop-ups for other things such as “album” or “gallery” should not be clicked.
(4) If you are using an iPhone with a system version that is above iOS 18.0.0, you need to manually open the access permission settings for Files & Folders to use the wired connection mode in Zno Instant. Open Settings > Privacy > Select Files & Folders > Open Zno Instant permissions and toggle it to green.
(5) iPhones’ original charging cable is not supported (a dedicated data cable is required).
(6) The camera's Bluetooth, WIFI, and FTP all need to be turned off (ignore this if there is no relevant setting).
(7) Make sure your Zno Instant APP is updated to the latest version.
(8) Check whether your phone system has opened the camera access permission for Zno Instant.
️️️️️️2. X-T30: Automatic upload mode
(1) Set the connection mode to X WEBCAM
(2) Photos taken in the Automatic upload mode of X-T30 will not be stored in the memory card
️️️️️️3. X-H2: currently only supports connecting to iPhones
4. The connection appears to be normal, why can't the photos in the camera be uploaded to ZI's Instant Gallery in real time?
The format selected for taking photos might be set to RAW or another format. Please make sure you are taking your photos in JPG format.
If our team can be of any additional assistance, please send us an email to support@zno.com or give us a call at 1-888-966-9539.
