Step 1: Start with the Zno Instant mobile app first

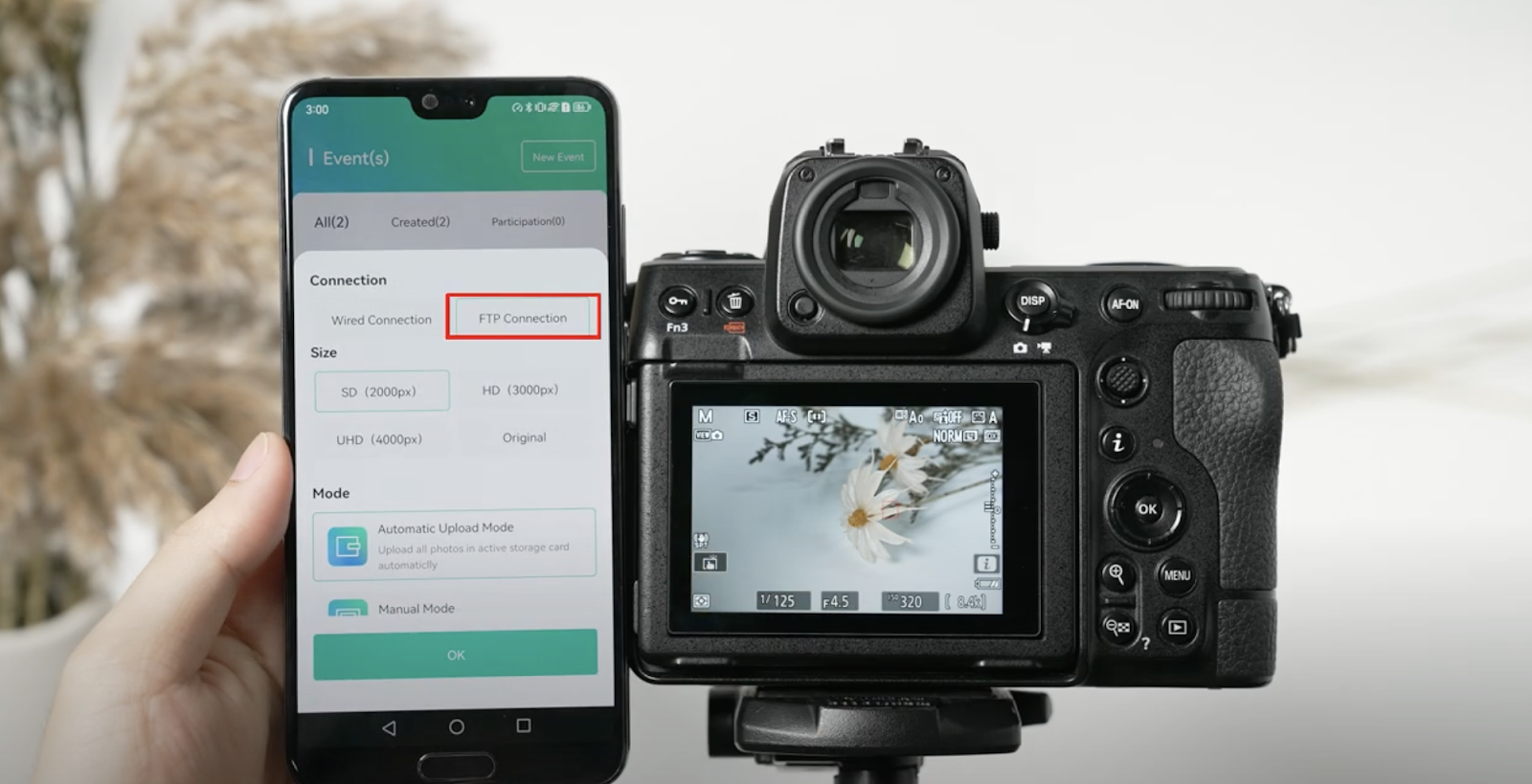

Tap on the event you want to upload to and select “FTP Connection”.
Then select image file size to upload to the gallery and upload mode (Automatic upload mode or Manual Mode).

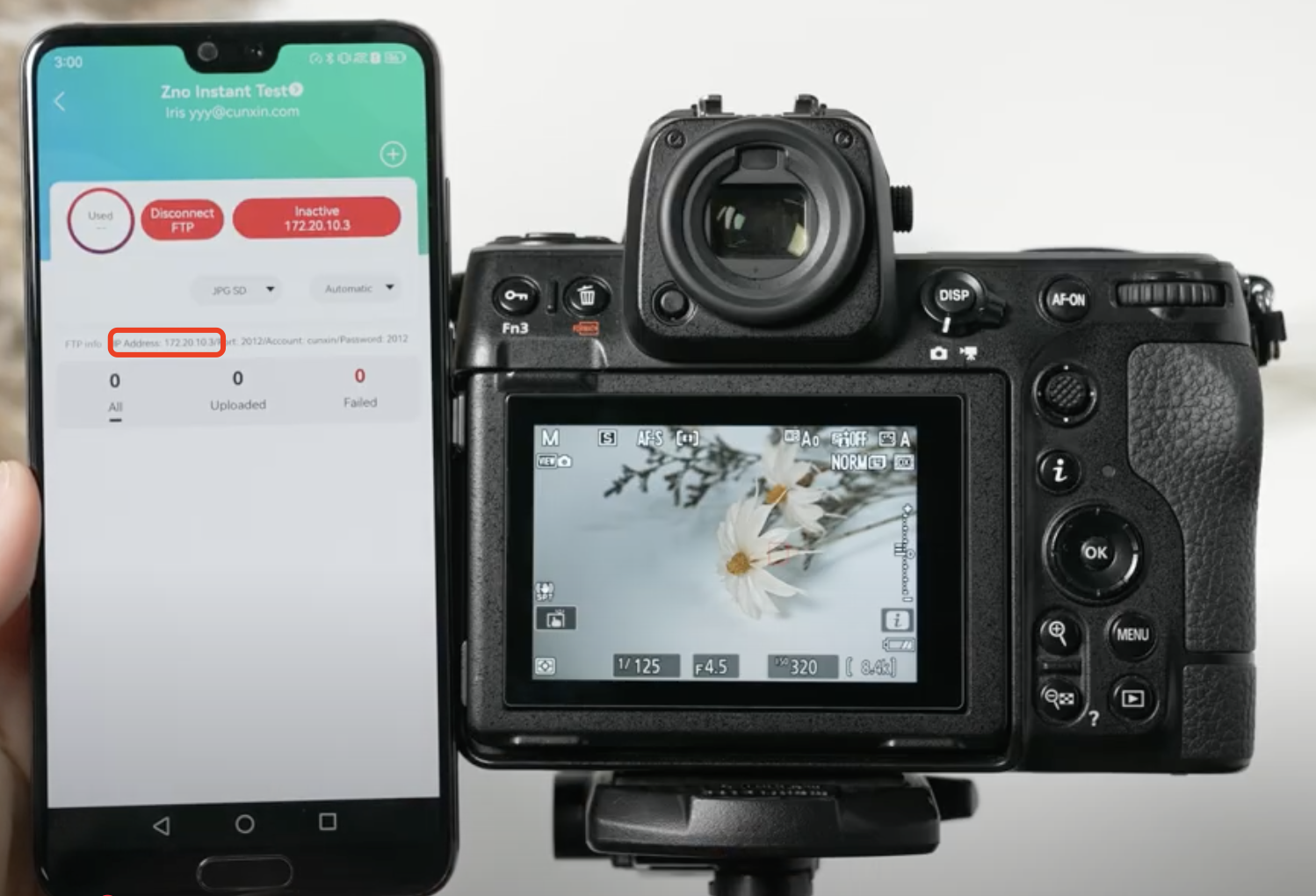

Note the FTP Info as listed in the Zno Instant mobile app.
Step 2: Connect Wifi network

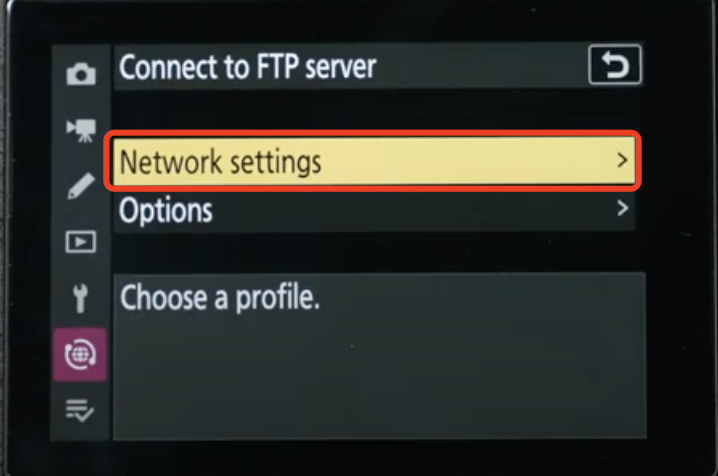

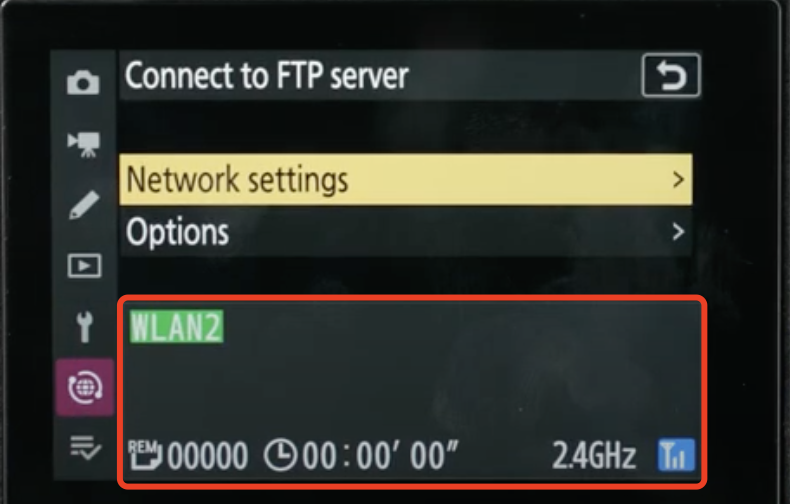

Find the "Connect to FTP Server" in Network menu and select "Network settings" .

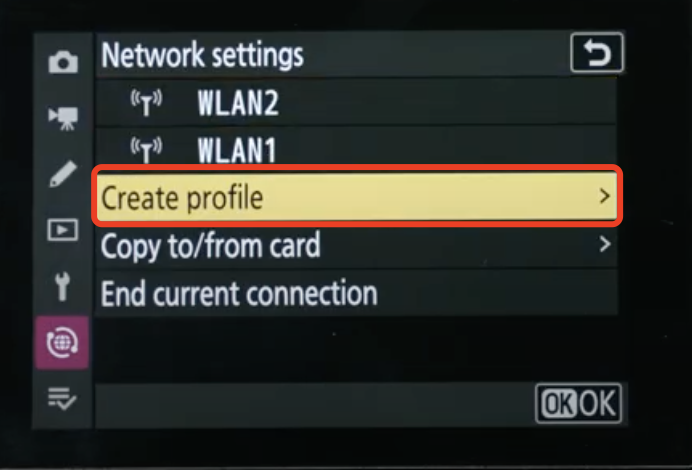

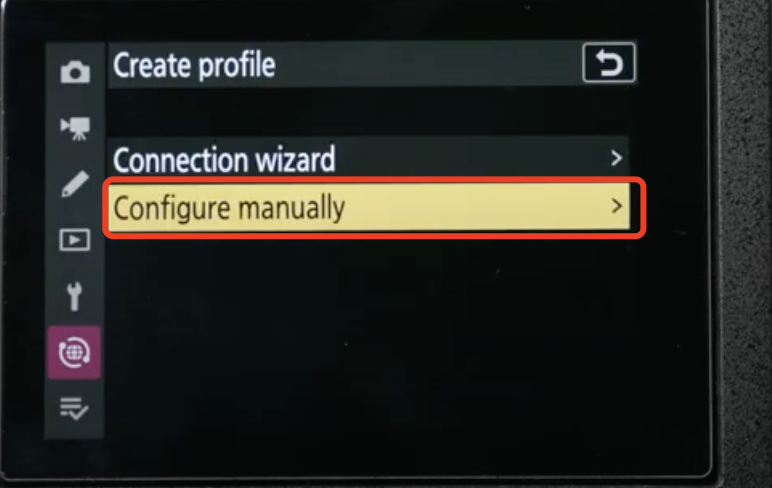

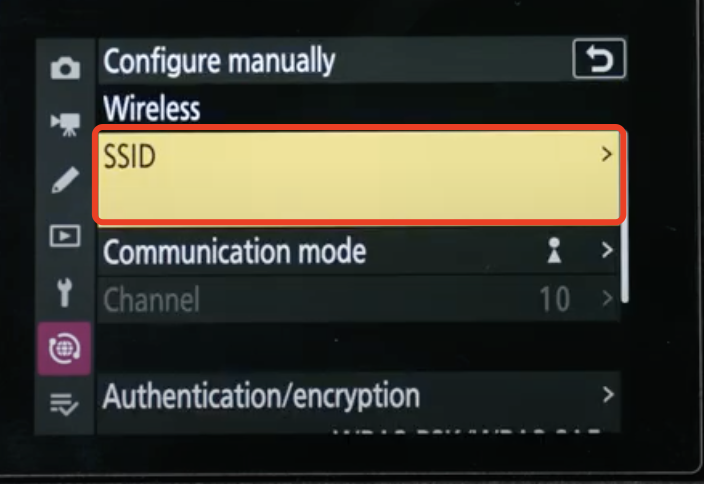

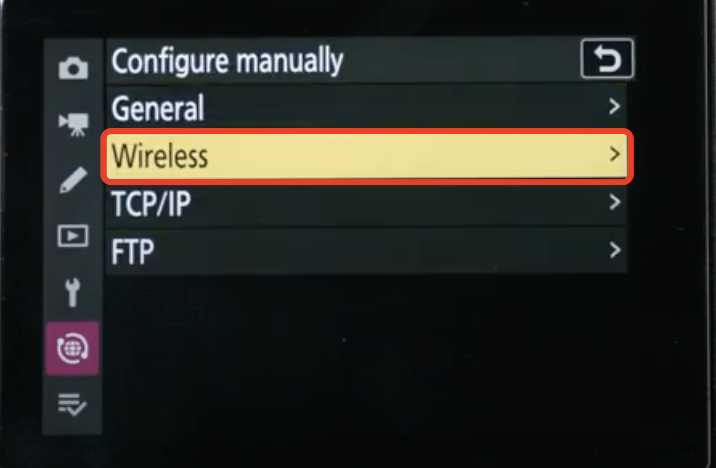

Then select "Create profile" - " Configure manually" - "Wireless LAN"- "Wireless"- "SSID", then enter your WiFi name or hotspot name.
Select "Password", enter your WiFi or hotspot password.
Step 3: Adjust FTP Settings

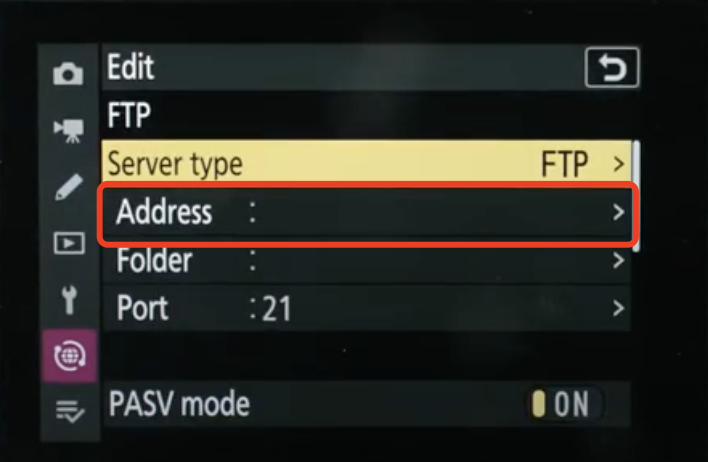

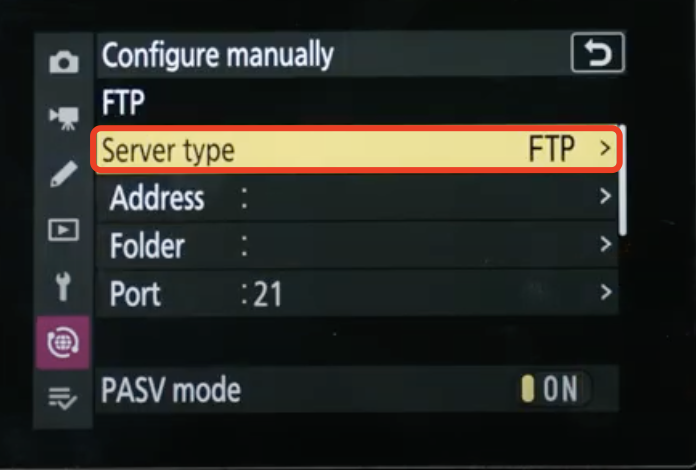

Set "Sever type" to “FTP”, enter “Address”, which is the IP Address displayed on the Zno Instant app.

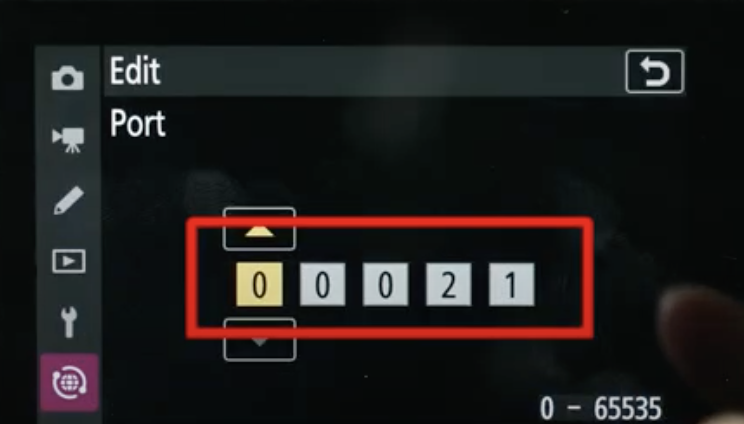

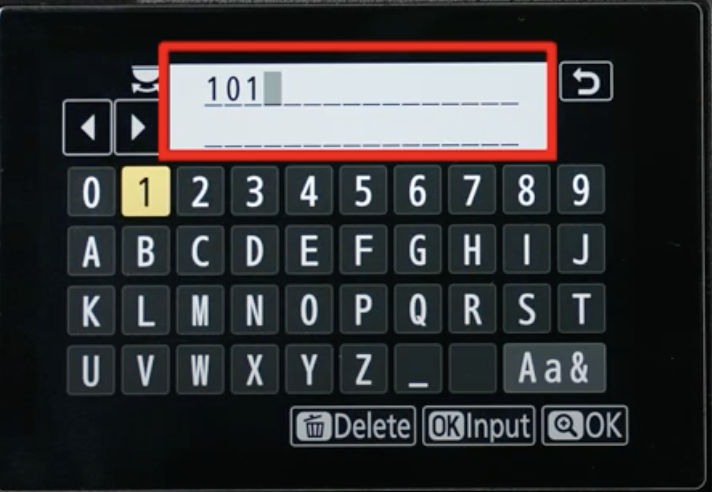

Next, select "Port" and enter the 4 digit port number.

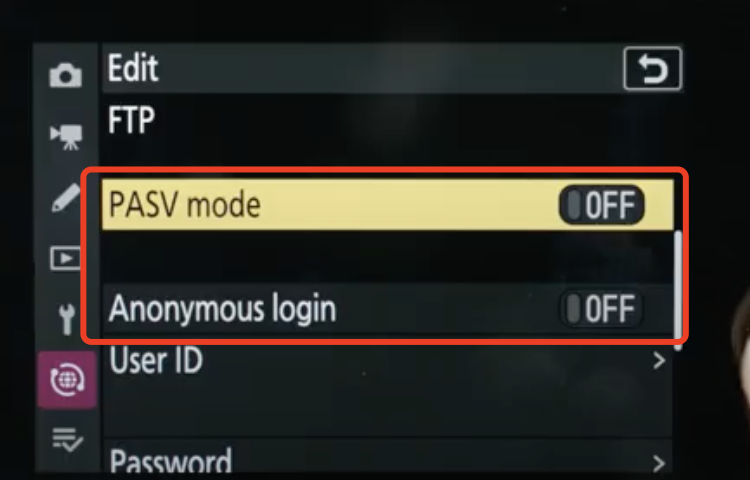

Turn off "PASV mode" and "Anonymous login".

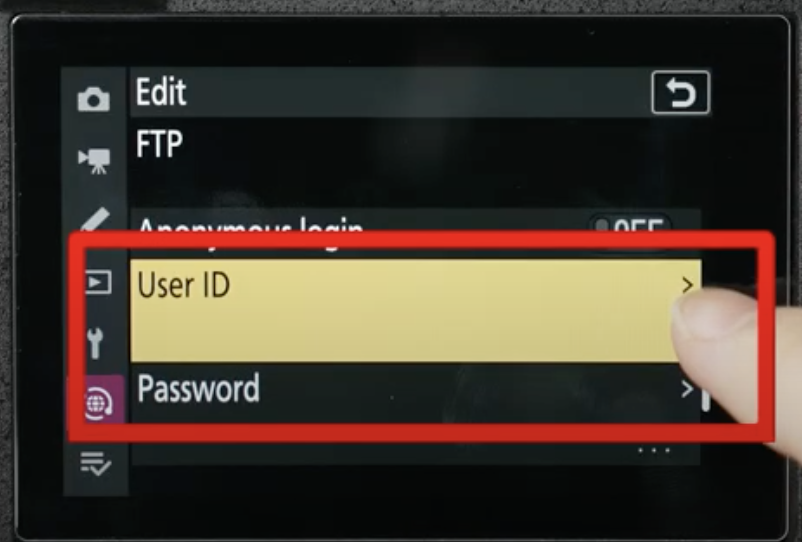

Enter "User ID" and"Password", which are all shown on the Zno Instant app.
Step 4: Check Connection
You can check if the network connection is good.
The green indicator lights up, indicating a successful connection.
Step 5: Other Settings

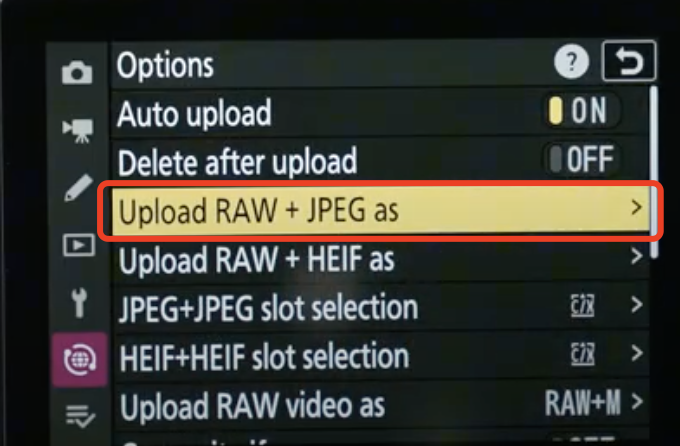

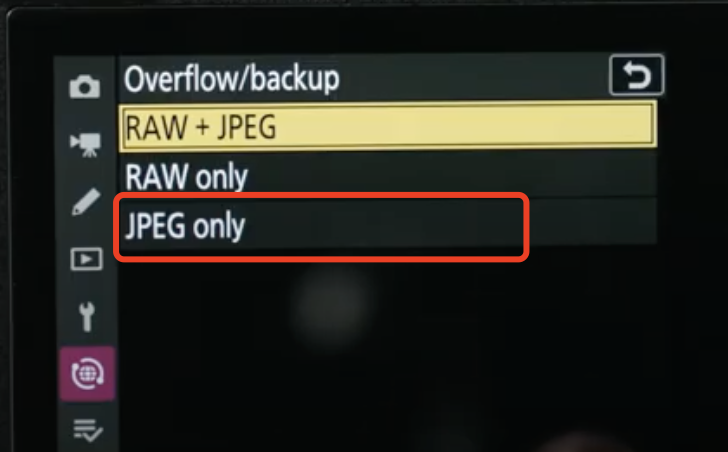

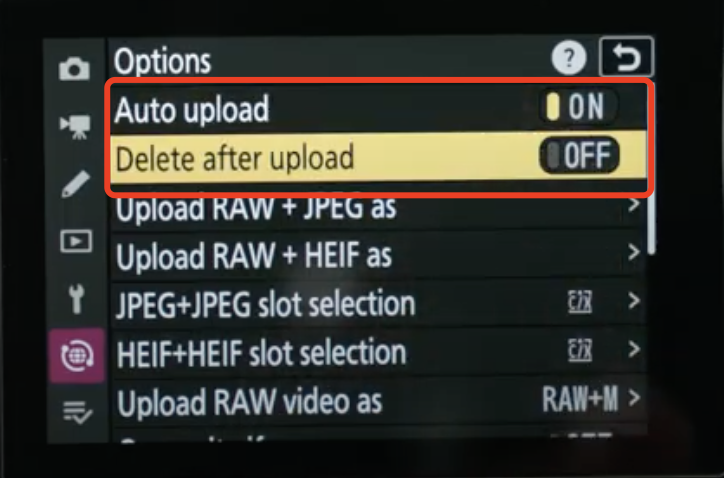

Go to "Options" - turn on "Auto upload" and turn off "Delete after upload", set "Raw+JPED" to "JPEG only"

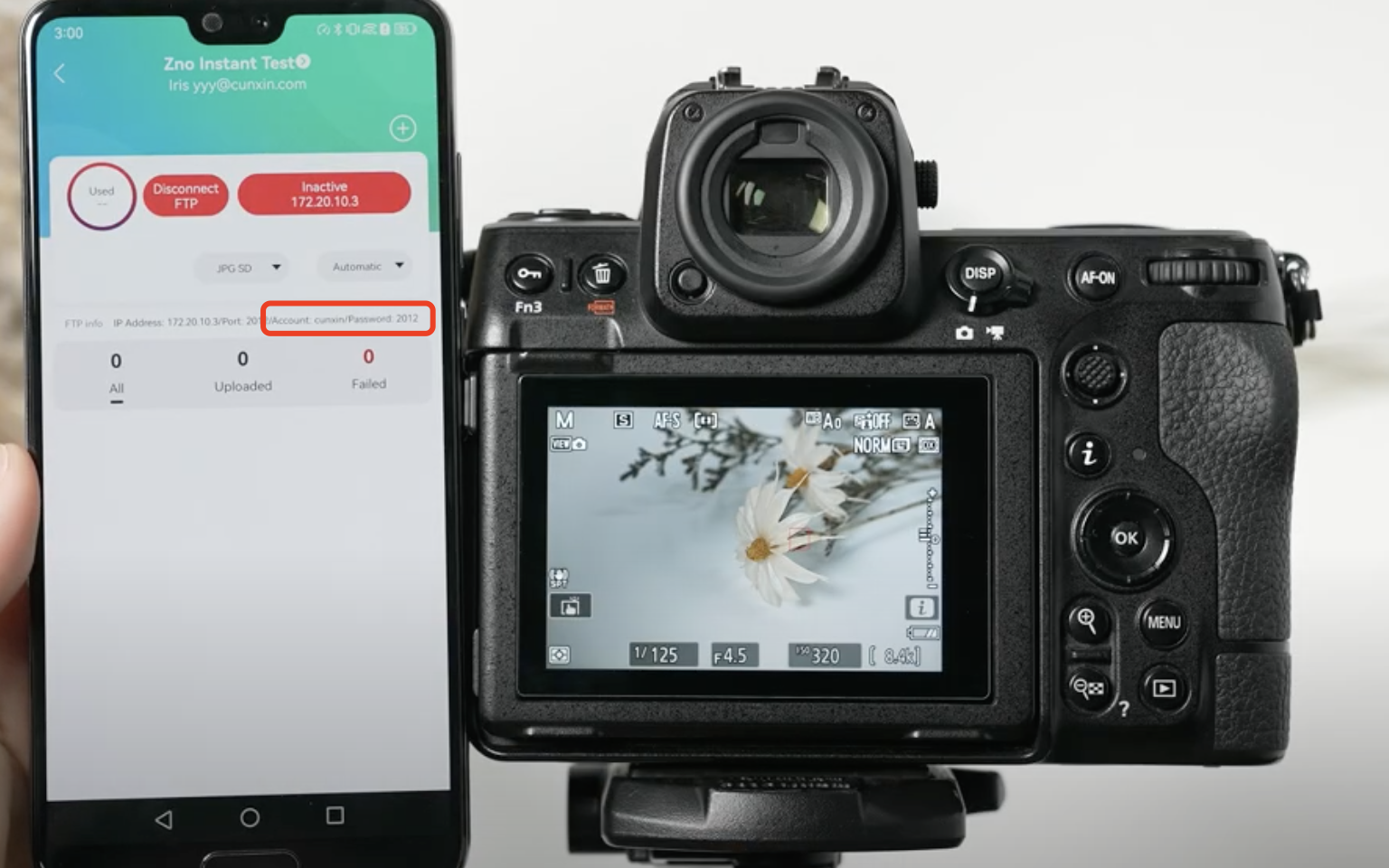

Step 6: Start taking photos at your event

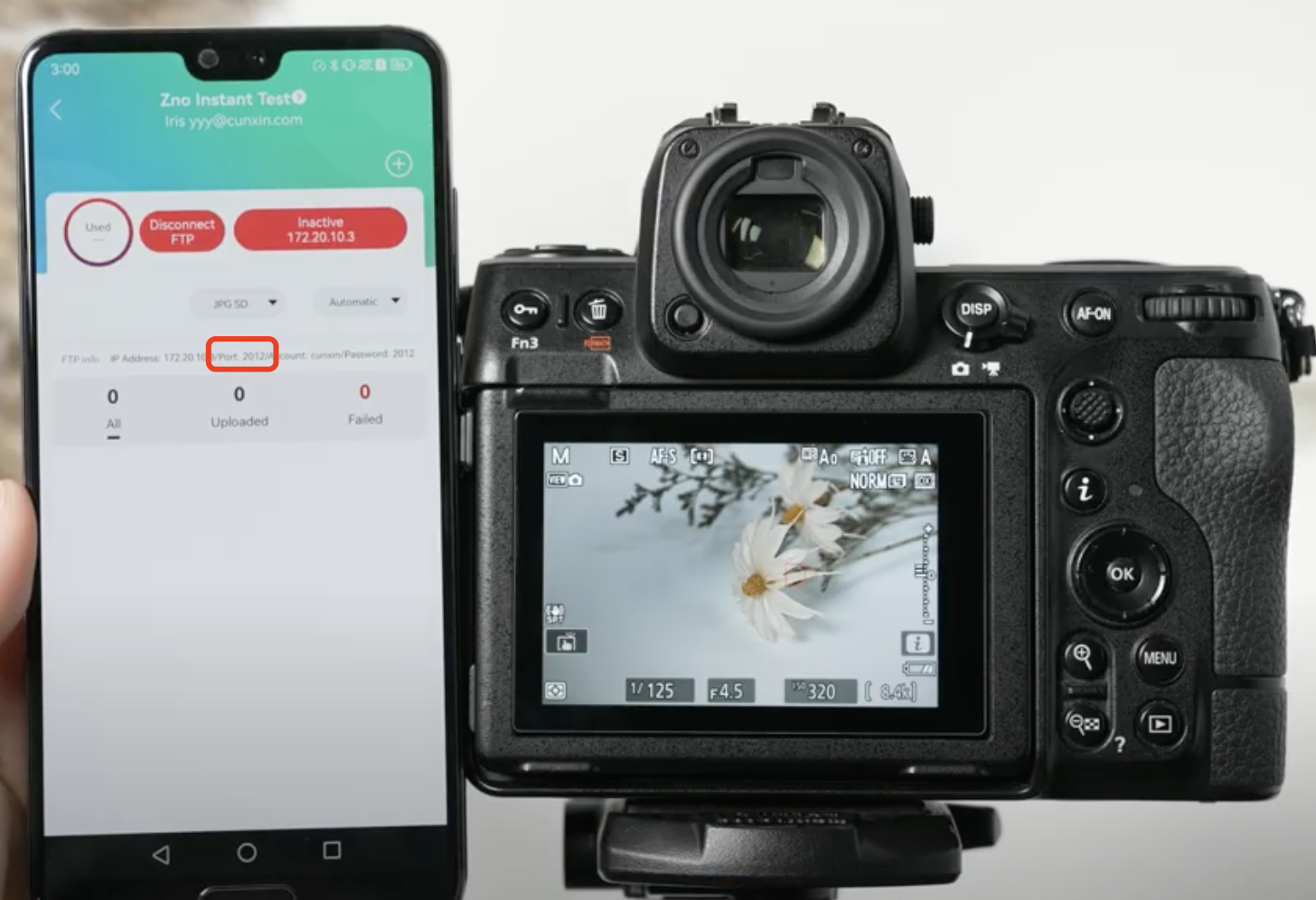

At this point, your camera is connected wirelessly to the Zno Instant mobile app. Note the two green buttons in the mobile app to show you're connected. Now, you can start taking photos at your event to automatically upload to the Zno Instant gallery.
